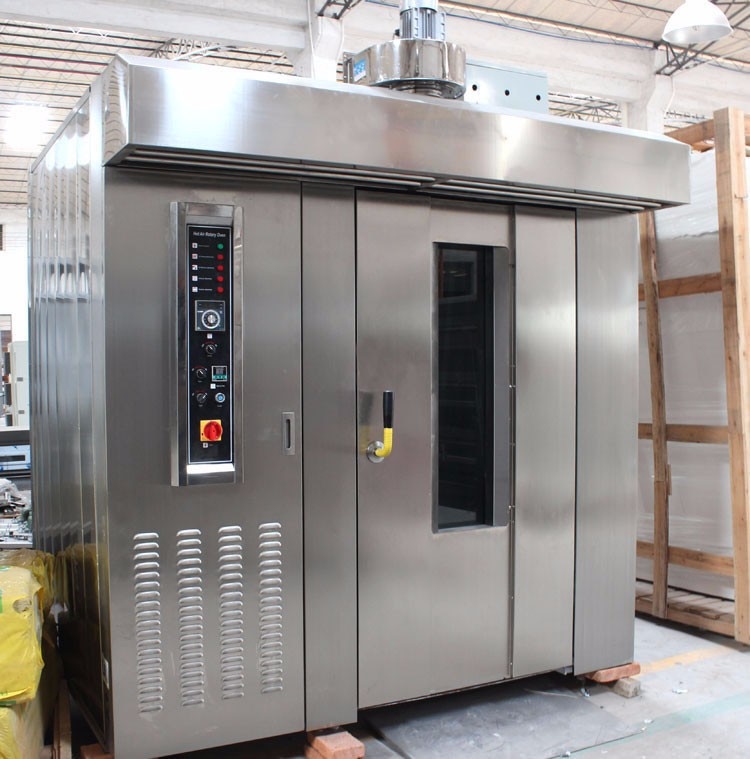

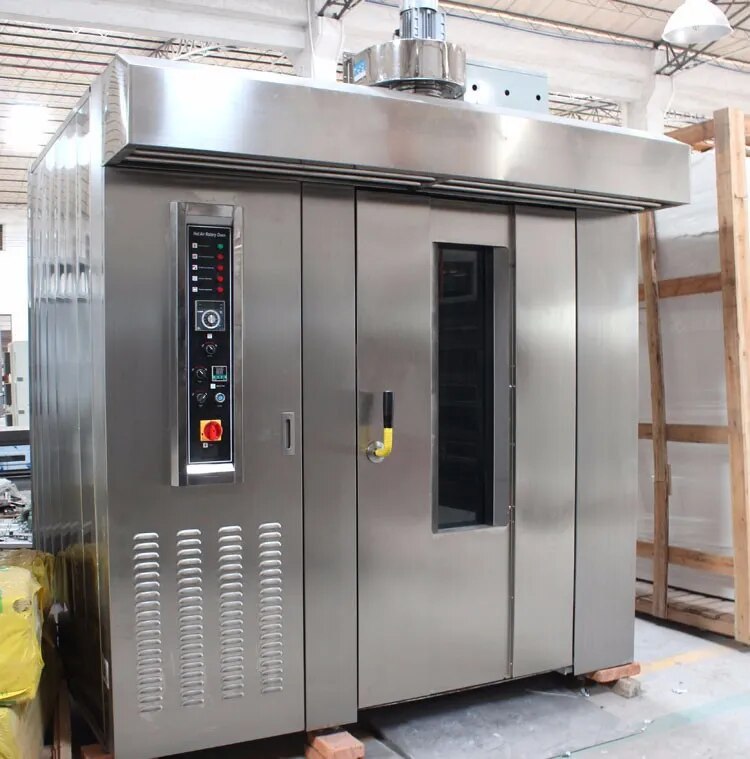

Regular Bread Rotary Rack Oven Stock

Our newly designed compact and comet Rack Ovens showcase exceptionally large Baking area with minimum space requirement and also fitted with a steam system which provides high volume and excellent baking for all products, results the best volume, shine, texture and crust in the market.

The energy required in the baking process is rightly fine tuned by an energy saving heating unit along with a well balanced blower with precision nozzle which distributes the exact amount of heat necessary into the baking chamber.

The oven is mounted on a sturdy base frame, thus the rotary rack oven can be delivered fully assembled and also it is reassuring to know that we can also deliver the oven disassembled so that it fits via a smaller door.

All the generating units are located outside the baking chamber where they are easy to reach and make it so practical..

A large stainless steel vapor hood (Chimney) fitted with auto running exhaust fan, it prevent steam from escaping into bakery when the oven door is opened.

Our Trolleys are known for its high stability and long life. They come with fully welded joints and strong rails for supporting the baking trays

Oven Specification

Sl. No. Model Dimensions (W x D x H) Max Temp. Connected Load Weight

1 MR840P 3585(W) x 2650(D) x 2400(H) mm

242"(W) x 105"(D) x 95"(H) 325°C 6.2 Kw (8.5HP)

(415VAC, 50 Hz) 4000 Kg.

2 MR672P 3030(W) x 2250(D) x 2400(H) mm

119"(W) x 89"(D) x 95"(H) 325°C 4.5 Kw (6.2HP)

(415VAC, 50 Hz) 3000 Kg.

3 MR420P 2820(W) x 2110(D) x 2400(H) mm

111"(W) x 80"(D) x 95"(H) 325°C 6.2 Kw (8.5HP)

(415VAC, 50 Hz) 2500 Kg.

4 MR336P 2130(W) x 1730(D) x 2400(H) mm

84"(W) x 69"(D) x 95"(H) 325°C 2.75 Kw (4.0HP)

(415VAC, 50 Hz) 1950 Kg.

5 MR210P 1937(W) x 1588(D) x 2400(H) mm

77"(W) x 69"(D) x 95"(H) 325°C 2.75 Kw (4.0HP)

(415VAC, 50 Hz) 1950 Kg.

6 MR168P 1730(W) x 1400(D) x 2400(H) mm

69"(W) x 56"(D) x 95"(H) 325°C 2.75 Kw (4.0HP)

(415VAC, 50 Hz) 1650 Kg.

7 MR120P 1265(W) x 1820(D) x 2200(H) mm

50"(W) x 72"(D) x 87"(H) 325°C 1.5 Kw 3ph or 1ph 1400 Kg.

8 MR80P 1350(W) x 1000(D) x 2200(H) mm

54"(W) x 40"(D) x 87"(H) 325°C 1.5 Kw 3ph or 1ph 1200 Kg.

ENQUIRE ROTARY RACK OVEN

Name:

E-mail:

Phone/mobile no.:

Address:

I am interested in 'Rotary Rack Oven'. Please send details and quotations.

Prove you're not a robot:

BAKERY EQUIPMENT RANGE

Spiral Mixer

Planetary Mixer / Cake Mixer

Bread Slicer

Rotary Rack Oven

Cookie Drop Machine

Sugar Grinder

Baking Oven

Sigma Mixer

Capacity of the Ovens (Per Batch Approx.)

Sl. No. Model & Tray Size Bread 400gm. Sponge Cake Buns 45gm. Biscuits Dry Rusk Kharis Fuel Consumption

1 MR840P

600mm x 800mm

(23.5" x 31.5") 840 Loaves

4 Trolleys x 14 Shelves 300 kg.

4 Trolleys x 14 Shelves 2520 Nos.

4 Trolleys x 18 Shelves 112 kg.

4 Trolleys x 18 Shelves 100 - 112 kg.

4 Trolleys x 18 Shelves 68 kg.

4 Trolleys x 18 Shelves 8.5 Ltr./hr.

2 MR672P

450mm x 700mm

(18" x 27") 672 Loaves

4 Trolleys x 14 Shelves 212 kg.

4 Trolleys x 14 Shelves 1728 Nos.

4 Trolleys x 18 Shelves 80 kg.

4 Trolleys x 18 Shelves 72 kg.

4 Trolleys x 18 Shelves 48 kg.

4 Trolleys x 18 Shelves 7.5 Ltr./hr.

3 MR420P

600mm x 800mm

(23.5" x 31.5") 420 Loaves

2 Trolleys x 14 Shelves 150 kg.

2 Trolleys x 14 Shelves 1260 Nos.

2 Trolleys x 18 Shelves 56 kg.

2 Trolleys x 18 Shelves 50 - 56 kg.

2 Trolleys x 18 Shelves 34 kg.

2 Trolleys x 18 Shelves 6.0 Ltr./hr.

4 MR336P

450mm x 700mm

(18" x 27") 336 Loaves

2 Trolleys x 14 Shelves 106 kg.

2 Trolleys x 14 Shelves 864 Nos.

2 Trolleys x 18 Shelves 40 kg.

2 Trolleys x 18 Shelves 36 kg.

2 Trolleys x 18 Shelves 24 kg.

2 Trolleys x 18 Shelves 5.5 Ltr./hr.

5 MR210P

600mm x 800mm

(23.5" x 31.5") 210 Loaves

2 Trolleys x 14 Shelves 75 kg.

2 Trolleys x 14 Shelves 630 Nos.

2 Trolleys x 18 Shelves 28 kg.

2 Trolleys x 18 Shelves 25 - 28 kg.

2 Trolleys x 18 Shelves 17 kg.

2 Trolleys x 18 Shelves 4.0 Ltr./hr.

6 MR168P

450mm x 700mm

(18" x 27") 168 Loaves

2 Trolleys x 14 Shelves 53 kg.

2 Trolleys x 14 Shelves 432 Nos.

2 Trolleys x 18 Shelves 20 kg.

2 Trolleys x 18 Shelves 18 - 20 kg.

2 Trolleys x 18 Shelves 12 kg.

2 Trolleys x 18 Shelves 3.0 Ltr./hr.

7 MR120P

450mm x 700mm

(18" x 27") 120 Loaves

1 Trolleys x 10 Shelves 38 kg.

1 Trolleys x 10 Shelves 336 Nos.

1 Trolleys x 18 Shelves 15 - 16 kg.

1 Trolleys x 18 Shelves 13.5 - 14 kg.

1 Trolleys x 18 Shelves 10 - 11 kg.

1 Trolleys x 14 Shelves 2.5 Ltr./hr.

8 MR80P

450mm x 150mm

(18" x 18") 80 Loaves

1 Trolleys x 10 Shelves 19 kg.

1 Trolleys x 10 Shelves 224 Nos.

1 Trolleys x 18 Shelves 9 - 10 kg.

1 Trolleys x 18 Shelves 9.5 kg.

1 Trolleys x 18 Shelves 7 kg.

1 Trolleys x 18 Shelves 2.0 Ltr./hr.
